Elo 1002L

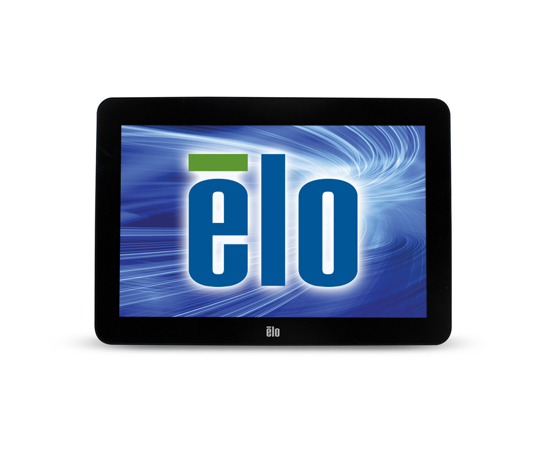

The Elo M-Series 1002L widescreen LED touch monitor is a modern and stylish interactive solution for customer engagement at the point of sale. The sleek wide aspect ratio touchscreen features edge-to-edge glass with display area real estate to showcase engaging, memorable, and rewarding content. For environments where space is scarce, the 1002L is ideal as a POS terminal customer-facing display. Built to withstand the rigors of continuous public use, the 1002L is well suited for high use retail venues. The sleek, thin look pairs well with any modern POS system

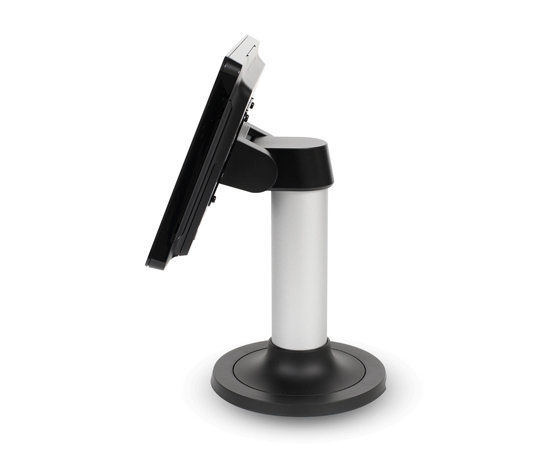

The multiple mount and stand options ensure installation flexibility and accommodate tabletop use as well as wall- and pole-mount with standard VESA mount patterns. Optional color coordinated retail accessories include a Magnetic Stripe Reader (MSR), barcode scanner and Near Field Communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.

Specifications

Model 1002L
Color Black
LCD Technology Active matrix TFT LCD with LED backlighting
Diagonal size 10.1"
Monitor dimensions
(WxHxD)
10.02 x 6.98 x 1.14 inches
254.6 x 177.3 x 29 mm
Monitor Thickness 1.14 inches/29 mm panel depth
Aspect Ratio 16:10
Active Display Area 8.57 x 5.37 inches
218 x 136.6 mm
Native Resolution 1280 x 800
Preset Video Timings 640x480 @ 60Hz
800x600 @ 60Hz
1024x768 @ 60Hz
1280x1024 @ 60Hz
Colors 262,000
Brightness
(Typical)
LCD panel: 350 nits
with IntelliTouch Pro PCAP, DC Power: 315 nits
IntelliTouch Pro PCAP, USB Power: 176 nits
Response Time
(Tr+tf) (Typical)
25 ms
Viewing Angle
(Typical)
Horizontal: ±85° or 170° total
Vertical: ±85° or 170° total
Contrast Ratio (Typical) 700:1
On-Screen Display (OSD) Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Video Input Video Format: Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included)
Input Video Horizontal Sync frequency range: 31.5- 60KHz
Input Video Vertical Sync (frame rate) frequency range: 60Hz
Touch Interface USB
Temperature Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (20°C to 60°C)
Humidity
(noncondensing)
Operating: 20%-80%
Storage: 10%-95%
MTBF 50,000 hours demonstrated
Mounting options VESA 4-hole 75mm mounting interface on rear of unit
Other Features • Optional wall mount kit available tabletop, shelf- and pole mounts available, see Accessories tab
• 2 x 2W internal speakers
• Kensington lock slot

Part Numbers

Part Number Technology Interface Surface Treatment Color
E045337 IntelliTouch Pro USB Antiglare Black
E138394 Non-touch USB Antiglare Black

Accessories

Part Number Accessory
E001002 Magnetic Stripe Reader
E001004 NFC Reader
E093433 Barcode Reader
E001003 VFD Customer Display
E047458 Pole Mount – 6 inch
E047663 Pole Mount – 12 inch
E047864 Pole Mount – 18 inch
E048069 Floor Stand – 5 foot
E043382 Shelf Mount Bracket
E045151 Pole Mount Bracket
E160104 Table-top Stand
E332358 Rear Facing Customer Display Bracket
E210789 1.8m Cable Kit
E210606 3m Cable Kit
E211174 Power Brick Kit – 1.8m Power Cable
E210973 Power Brick Kit – 3m Power Cable
