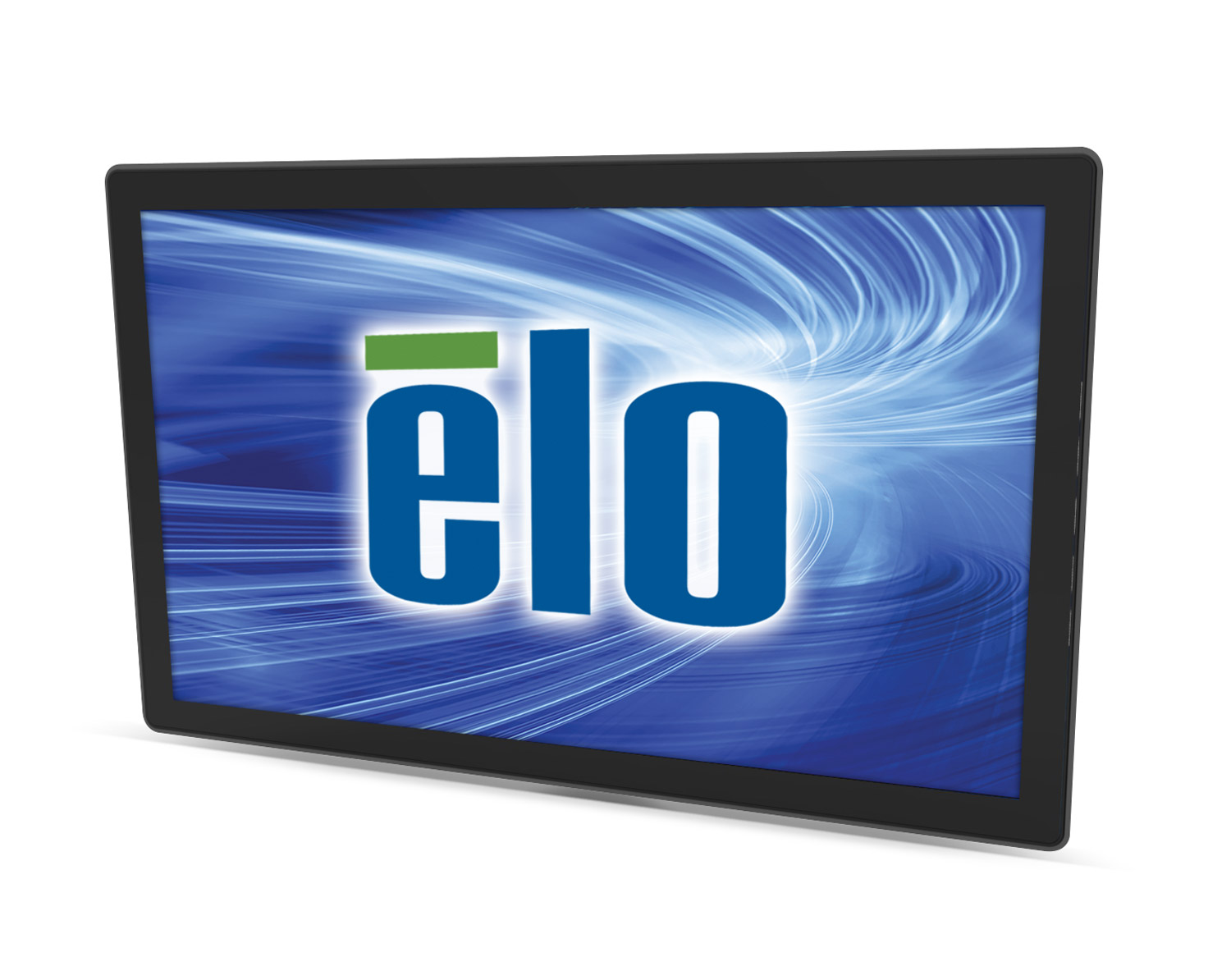

Elo 2440L
The Elo Touch Solutions 2440L 24-inch full HD open-frame touchmonitor delivers a professional-grade large format display in a slim, integrated package. The 2440L is designed for use in public environments in applications like information kiosks, ticketing, gaming machines and self-service stations.
The 2440L is available with a choice of single-touch and multi-touch technologies; IntelliTouch, IntelliTouch Plus, iTouch, iTouch Plus and projected capacitive. Elo's iTouch surface acoustic wave touchscreen technology and projected capacitive products offer a flat edge to edge solution that brings a sleek modern feel to any application.
The cost-effective iTouch versions are ideal for vertical implementations, and are available in both single-touch and dual-touch offerings. Projected capacitive products are suitable for tabletop or horizontal applications with multi-touch requirements. Both surface acoustic wave and projected capacitive are pure-glass touchscreen technologies that combine long-term reliability and drift-free stability with high-quality optics that preserves color purity.
Featuring a compact form factor and optional rack- and front-mount bezels, the 2440L is easy to integrate.
Specifications
| Model | 2440L |
| Color | Black |
| LCD Technology | Active matrix TFT LCD with LED backlight |
| Diagonal size | 23.6" |
| Dimensions | 561.6 x 325.8 x 42.2 mm / 22.1 x 12.8 x 1.7 inches |
| Aspect Ratio | 16:09 |
| Active Display Area | 521.3 x 293.2 mm/23.5 x 1.7 inches |
| Native Resolution | 1920 x 1080 - 1080p Full HD |
| Preset Video Timings | 640x480 @ 60, 66, 72Hz
720x400 @ 70Hz
720x480 @ 60Hz
720x576 @ 50Hz
800x500 @ 60Hz
800 x600 @ 56, 60, 72Hz
1024x768 @ 60, 65,72,75Hz
1280x720 @ 50, 60Hz
1280x800 @ 60Hz
1280x960 @ 60Hz
1280x1024 @ 60, 75Hz
1360x768 @ 60Hz
1366x768 @ 60Hz
1440x900 @ 60Hz
1680x1050 @ 60Hz
1920x1080@50, 60Hz
|
| Colors | 16.7 million |
| Brightness (Typical) | LCD panel: 300 nits
IntelliTouch: 270 nits
IntelliTouch Plus: 270 nits
iTouch: 270 nits
iTouch Plus: 270 nits
Projected Capacitive: 270 nits
|
| Response Time (Tr+tf) (Typical) | 5 msec |
| Viewing Angle (Typical) | Horizontal: 170°
Vertical: 160°
|
| Contrast Ratio (Typical) | 1000:01:00 |
| On-screen Display (OSD) | Accessible through switches on the OSD Control Remote accessory
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Deafaults, Video Source
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: User Controls
|
| Video | Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D , Dual-Link connector
Input Video Horizontal Sync frequency range: 31.5-80KHz
Input Video Vertical Sync (frame rate) frequency range: 50-75Hz
|
| Monitor input power connector | External DC - Optional power brick (sold separately) Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) |
| Monitor input power signal specifications | 12VDC +/- 5% |
| Adapter input connector | IEC 60320 C14 |
| Adapter input voltage range | 100-240VAC, 50/60Hz |
| Power Consumption (Typical) | ON (monitor + AC/DC adapter): 30W
SLEEP (monitor + AC/DC adapter): 2W;
OFF (monitor + AC/DC adapter): 1W
|
| Weight | Unpackaged: 5.7 kg (12.5 lb)
Packaged: 8.5 kg (18.7 lb)
|
| Shipping Dimensions | 685 x 455 x 150 mm / 27 x 17.9 x 5.9 inches |
| Temperature | Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: -20 °C to 60 °C (-4 °F to 140 °F)
|
| Humidity (non-condensing) | Operating: 20% - 80%;
Storage: 10% - 90%;
|
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 200mm x 100mm VESA 4-hole mounting interface on rear of unit.
Side/Flush mounting brackets included with the unit.
See dimensional drawings for details.
|
Part Number
| Part Number |
Technology |
Bezel |
Surface Treatment |
Interface |
Availability |
| E000413 |
IntelliTouch |
Yes |
Clear |
USB/Serial |
Worldwide |
| E000414 |
iTouch |
No |
Clear |
USB/Serial |
Worldwide |
| E000415 |
IntelliTouch Plus |
Yes |
Clear |
USB |
Worldwide |
| E000416 |
iTouch Plus |
No |
Clear |
USB |
Worldwide |
| E000417 |
Projected capacitive |
No |
Clear |
USB |
Worldwide |
|
