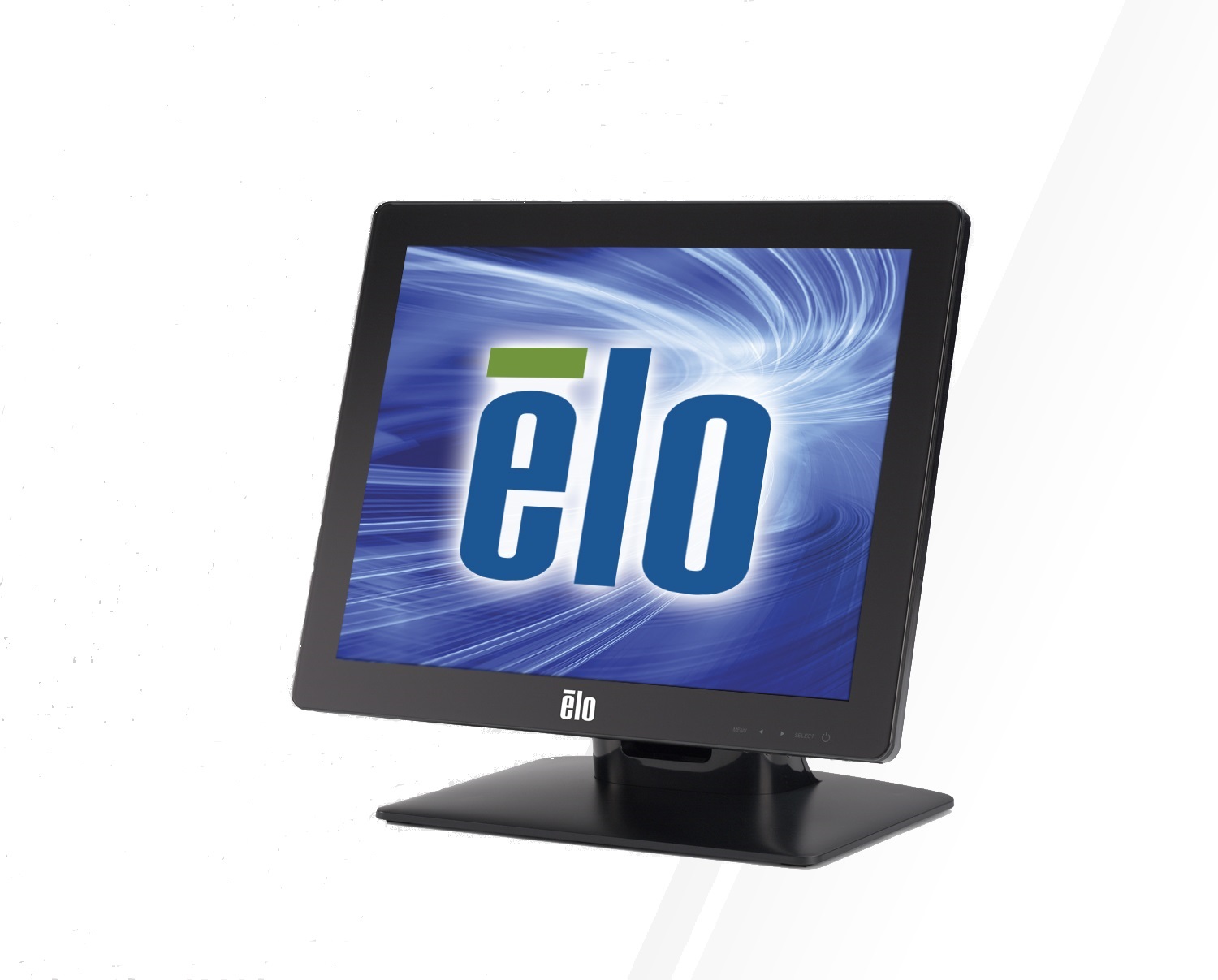

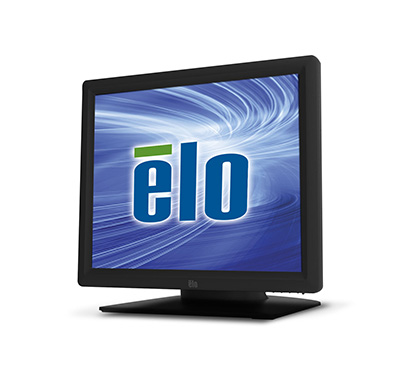

Elo 1517L
The 1517L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, “built for touch” industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1517L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
The 1517L Touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panels.
Specifications
| Model |
1517L
|
| Display |
15.0" diagonal, Active matrix TFT LCD
|
| Aspect Ratio |
4:3, Active matrix TFT LCD
|
| Useful Screen Area |
Horizontal: 12.0" (304 mm)
Vertical: 9.0" (228 mm)
|
| Native (Optimal) Resolution |
1024 x 768
|
|
Other Supported Resolutions
|
640x480 60Hz,75Hz
720x400 70Hz
800x600 56, 60Hz,75Hz
1024x768 60Hz,75Hz
|
|
Colors
|
16.2 million
|
Brightness
(Typical)
|
LCD panel: 250 nits
with iTouch: 225 nits
with AccuTouch: 200 nits
|
Response Time - Total
(Typical)
|
25 msec
|
Viewing Angle
(Typical)
|
Horizontal: ±80° or 160° total
Vertical: ±70° or 140° total
|
|
Contrast Ratio (Typical)
|
700:1
|
|
On-ScreenDisplay (OSD)
|
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust,
Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall
Defaults
Languages: English, French, Italian, German, Spanish, Simplified Chinese,
Traditional Chinese, Japanese
Lockouts: OSD, Power
|
|
Input Video Format
|
Analog VGA
|
Input Video Signal
Connector
|
Mini D-Sub 15-Pin VGA type
|
|
Input Frequency
|
Horizontal: 31.5-80kHz
Vertical: 56-75Hz
|
|
Power Supply
|
External DC (power brick)
|
|
Input Voltage
|
AC: 100-240 VAC, 50/60 Hz
DC: +12VDC ±5%
|
|
Input Connector
|
AC: IEC 60320 C6
DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter,
8.8 mm barrel length)
|
Power Consumption
(Typical)
|
10W
|
Monitor Dimensions
(with Stand)
(W x D x H)
|
14.1" (358 mm) x 6.8" (173 mm) x 12.5" (318 mm)
Dimensions vary with stand position and options selected
|
Shipping Box
Dimensions
(W x D x H)
|
17.2" (436 mm) x 14.6" (370 mm) x 7.7" (195 mm)
|
|
Weight
|
Actual with stand: 9.0 lb (4.1 kg)
Shipping with stand: 15.0 lb (6.8kg)
|
|
Temperature
|
Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
|
Humidity
(non-condensing)
|
Operating: 20%-80%
Storage: 10%-90%
|
|
Form Factor
|
Desktop
|
|
Enclosure Color
|
Black or White
|
|
MTBF
|
50,000 hours demonstrated
|
|
Stand Options
|
Removable
|
|
Mounting Options
|
75 mm VESA mount
Threaded-through mounting holes, under stand
|
|
Sealing
|
Touchscreen sealed to bezel
Touchscreen sealed to LCD
|
|
Other Features
|
Security lock receptacle
|
Part Numbers
| Technology |
Interface |
Surface Treatment |
Part # (RoHS
Compliant) |
Color |
Availability |
| AccuTouch |
USB |
Antiglare |
E999454 |
Black |
Worldwide |
| AccuTouch |
USB |
Antiglare |
E247852 |
White |
Worldwide |
| iTouch |
Serial/USB |
Clear |
E829550 |
Black |
Worldwide |
| iTouch |
USB |
Clear |
E291747 |
White |
Worldwide |
Optional Peripherals
| Peripheral |
Interface |
Color |
Part #(RoHS Compliant) |
| Magnetic Stripe Reader |
USB |
Black |
E500356 |
| Magnetic Stripe Reader |
USB |
White |
E233227 |
|
