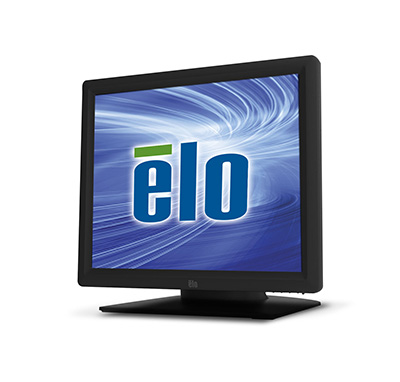

Elo 1717L
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Specifications
| Model |
1717L |
| Color |
Black or White |
| LCD Technology |
Active matrix TFT LCD with LED backlighting |
| Diagonal size |
17.0" |
| Monitor thickness |
1.7 inches/43 mm panel depth |
| Aspect Ratio |
5:4 |
| Active Display Area |
13.3 x 10.6 inches/338 x 270 mm |
| Native Resolution |
1280 x 1024 |
| Preset Video Timings |
640x480 @ 60Hz, 75Hz
720x400 @ 70Hz
800x600 @ 56Hz, 60Hz, 75Hz
1024x768 @ 60Hz, 75Hz
1280x1024 @ 60Hz, 75Hz
|
| Colors |
16.7 million |
Brightness
(Typical) |
LCD panel: 250 nits
with AccuTouch: 200 nits
with IntelliTouch: 225 nits
with iTouch: 225 nits
|
Viewing Angle
(Typical) |
Horizontal: ±85° or 170° total
Vertical: ±80° or 160° total
|
| Contrast Ratio (Typical) |
800:1 |
On-Screen Display
(OSD) |
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H position, V-Position, Auto-Adjust, Aspect Ratio,
Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese,
Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
|
| Video |
• Analog VGA on Female DE-15 connector
• Input Video Horizontal Sync frequency range: 31.5- 80KHz
• Input Video Vertical Sync (frame rate) frequency range: 56-75Hz
|
| Touch Interface |
Serial (RS232) and USB |
Monitor input power
connector – AC |
IEC 60320 C6 |
Monitor input power
signal specifications |
100-240VAC, 50/60Hz |
Monitor input power
connector - DC |
Coaxial power jack (2.1mm pin outer diameter, 6.4mm barrel inner diameter) |
Monitor input power
signal specifications |
12VDC ±5% |
| Note |
Optional AC-DC power adapter sold for this monitor |
Adapter input
connector |
IEC 60320 C14 |
Adapter input voltage
range |
100-240VAC, 50/60Hz |
Power Consumption
(Typical) |
• ON (monitor only) : 20W
• SLEEP (monitor only) : 1.8W
• OFF (monitor only) : 1.4W
|
| Shipping Dimensions |
20.1 x 9.2 x 20 inches/511 x 233 x 510 mm |
Dimensions
(with stand) |
15.4 x 7.5 x 14.2 inches/392 x 215 x 361 mm |
| Weight |
• Unpackaged: 11.9 lb/ 5.4 kg
• Packaged: 18.3lb/ 8.3 kg
|
| Temperature |
Operating: 32°F to 104°F (0°C to 40°C)
Storage: -4°F to 140°F (20°C to 60°C)
|
Humidity
(noncondensing) |
Operating: 20%-80%
Storage: 10%-90%
|
| MTBF |
50,000 hours demonstrated |
| Mounting Options |
75 mm VESA mount
Capped through-mount holes |
| Sealing |
Touchscreen sealed to bezel
Touchscreen sealed to LCD |
| Other Features |
Security lock receptacle |
Part Numbers
| Part Number |
Technology |
Interface |
Bezel |
Surface Treatment |
Color |
Availability |
| E877820 |
AccuTouch |
Serial/USB |
Yes |
Antiglare |
Black |
Worldwide |
| E371267 |
AccuTouch |
Serial/USB |
Yes |
Antiglare |
White |
Worldwide |
| E649473 |
AccuTouch |
Serial/USB |
No |
Antiglare |
Black |
Worldwide |
| E679434 |
AccuTouch |
Serial/USB |
No |
Antiglare |
White |
Worldwide |
| E077464 |
IntelliTouch |
Serial/USB |
Yes |
Antiglare |
Black |
Worldwide |
| E214112 |
IntelliTouch |
Serial/USB |
Yes |
Antiglare |
White |
Worldwide |
| E179069 |
iTouch |
Serial/USB |
No |
Clear |
Black |
Worldwide |
| E227652 |
iTouch |
Serial/USB |
No |
Clear |
White |
Worldwide |
| E017030 |
iTouch |
Serial/USB |
No |
Antiglare |
Black |
Worldwide |
| E415033 |
iTouch |
Serial/USB |
No |
Antiglare |
White |
Worldwide |
External Elo Peripherals
| Peripheral |
Interface |
Color |
Part #(RoHS Compliant) |
| Magnetic Stripe Reader |
USB |
Black |
E500356 |
| Magnetic Stripe Reader |
USB |
White |
E233227 |
|
