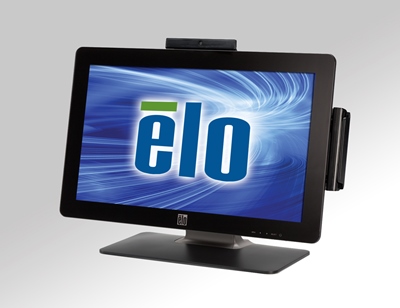

Elo 2201L

The 2201L offers a flexible, space-saving design, HD wide-aspect ratio 22-inch LCD touchmonitor with Windows 7 and 8 multi-touch interactivity. Well-suited to meet durability as well as aesthetic requirements for front-of-store, back office, kiosk and even out-of-store applications, the Elo TouchSolutions 2201L offers real versatility for a variety of retail and hospitality interactive solutions including:

- Promotion of cross-channel, online sales in the store (shoppers purchase items online in the store for home delivery or shop for sold out or unavailable merchandise in additional store locations) - Hostess stations that require large screens to view restaurant layouts / seating charts - Back office solutions integrating labor management and inventory analysis - Customer assist and self-service solutions (theaters, hotels, auto dealerships) - Shelf-level / countertop interactive digital signage displays - Interactive HD video to promote lifestyle marketing in larger retail / lifestyle stores

The 2201L features a choice of touchscreen technologies: IntelliTouch Plus multi-touch for an accurate two-touch response and vivid images; iTouch for a seamless, glass-to-edge zero-bezel design or projected capacitive (PCAP) for a durable, zero-bezel, glass-to-edge surface with multi-touch. And, instead of the high energy use CCFL backlights of other touchmonitors, the 2201L is set apart by using state-of-the-art LED technology to reduce energy usage.

Wide-aspect displays like the Elo Touch Solutions 2201L are easier to use and incorporate into the workplace than traditional desktop touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in corporate environments for publishing and dual window applications, and are popular in public venue environments due to a high-definition cinematic-like experience.

Specifications

Model 2201L
Form factor Desktop
Display 22" diagonal, Active matrix TFT LCD
Aspect ratio 16:9 Widescreen
Useful screen area Horizontal: 18.8" (477 mm)
Vertical: 10.6" (268 mm)
Monitor dimensions
(with stand)
Width: 21.7" (551 mm)
Height: 15.4" 392 mm)
Depth: 7.6" (193 mm)
Native (optimal)
resolution
640x480 60Hz
720x576 50Hz
800x600 56, 60Hz
1024x768 60Hz
1280x720 50, 60Hz
1280x960 60Hz
1280x1024 60Hz
1366x768 60Hz
1440x900 60Hz
1680x1050 60Hz
1920x1080 50, 60Hz
Colors 16.7 million
Brightness
(typical)
LCD panel: 250 nits
iTouch: 225 nits
IntelliTouch Plus: 225 nits
PCAP: 225 nits
Response time - total
(typical)
5 msec
Viewing angle
(typical)
Horizontal: ±85° or 170° total
Vertical: ±80° or 160° total
Contrast ratio (typical) 1000:1
On-screen display (OSD) Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, Vposition, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD Rotation, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Input Video Analog VGA on Female DE-15 connector
Digital DVI on Female DVI-D connector
Horizontal Sync Frequency Range: 32-80KHz
Vertical Sync Frequency Range: 50-75 Hz
Power supply DC (external power adapter included with unit)
Input voltage AC/DC Adapter: 100-240 VAC, 50/60 Hz
Monitor: 12 VDC ±5%
Input connector AC/DC Adapter: IEC 60320 C14
Monitor: Coaxial power jack (2 mm pin diameter, 6.5 mm barrel diameter, 10 mm barrel length)
Power consumption
(typical)
29W
Speakers Two 2W internal speakers
Audio input connector One 3.5mm TRS jack
Headphone output
connector
One 3.5mm TRS jack
Shipping Box
Dimensions
Width: 20.5" (520 mm)
Depth: 27.2" (690 mm)
Height:11.0" (280 mm)
Weight Actual: 16.5 lb (7.5 kg)
Shipping: 27.6 lb (12.5 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 60°C (-4°F to 140°F)
Humidity
(noncondensing)
Operating: 20%-80%
Storage: 10%-90%
Enclosure Color Black
MTBF 50,000 hours demonstrated
Stand options Tiltable and removable
Mounting options VESA 4-hole 100mm mounting interface on rear of unit
4-hole 200x100mm threaded mounting on bottom of stand
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD
Other features Security lock receptacle

Part Numbers

Technology Interface Surface
Treatment
Part # (RoHS
Compliant)
Availability
iTouch USB Clear E382790 Worldwide
IntelliTouch Plus USB Clear E107766 Worldwide
Projected
Capacitive
USB Clear E497002 Worldwide

Accessories

Part # Region Product Description
E005277 N. America North America power brick
E571601 EMEA & Korea European & Korea power brick
E180092 U.K. UK power brick
E558862 China China power brick
E818655 Taiwan Taiwan power brick
E182546 Japan Japan power brick
E887099 Argentina Argentina power brick
