Elo 2401LM

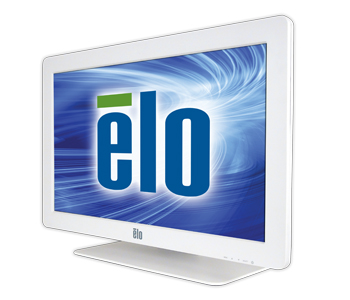

The fully featured 2401LM touchmonitor offers IntelliTouch™ surface acoustic wave (SAW) touchscreen technology which provides stable "drift-free" touch response, outstanding image clarity and full HD resolution, resulting in an accurate touch experience and vivid images. Additionally, the touchmonitor is equipped with industry standard connectivity in the form of a combination USB and RS232 touch controller, DVI-D, VGA connectors and built-in audio amp with stereo speakers. The 2401LM is available in white (P/N E263686) and black (P/N E000140) color.

The 2401LM is compliant with multiple safety and electrical certification standards, including EN 60950-1 and EN 60601-1 for safety and EN 60950-1, EN55022, EN55024, and EN 60601-1 (3rd Edition) for EMC. Equipped with an LED backlit state-of-the-art LCD panel, the monitor is environmentally friendly with reduced power consumption.

The Elo 2401LM touchmonitor is an effective solution for nurse stations, computer-aided therapy, electronic medical record keeping, paperless charting, patient self-check-in, as well as non-medical applications that benefit from DVI-D input, speakers and a pristine full HD image display.

Having been "designed for touch" from the drawing board up, the 2401LM features a stable stand with tilting functionality which can be removed for VESA mounting; cable management and cable fastening features to prevent accidental disconnection; OSD controls with lockout capability; and an IPx1 drip-resistant housing.


Model 2401LM
Display 24.0" diagonal
Aspect Ratio 16:09
Active Display Area 531.4 x 298.9 mm / 20.9 x 11.7 inches
LCD Technology Active matrix TFT LCD with LED backlight
Native (Optimal) Resolution 1920 x 1080 at 60 Hz
Other Supported Resolutions 640 x 350 @ 70 Hz
720 x 400 @ 70 Hz
640 x 480 @ 60, 72 & 75 Hz
800 x 600 @ 56, 60 Hz & 72 Hz
832 x 624 @ 75 Hz
1024 x 768 @ 60, 70 & 75 Hz
1280 x 800 @ 60 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60 Hz & 75 Hz
1360 x 768 @ 60 Hz
1440 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1680 x 1050 @ 60 Hz
Colors 16.7 million
Brightness (typical) LCD panel: 300 nits
IntelliTouch: 270 nits
Response Time (Tr+tf) (Typical) 25ms
Viewing Angle (typical)  Horizontal: 178°
Vertical: 178°
Contrast Ratio (typical) 3000:01:00
On-Screen Display (OSD) Controls (bottom ): menu, up, down, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall, volume, sharpness, OSD H/V POS, OSD timeout
Languages: English, French, Italian, German, Spanish, Japanese, Simplified Chinese, Polish, Swedish
Lockouts: power, user controls.
Input voltage AC Adaptor: 100-240 VAC, 50/60Hz
Input voltage Monitor DC: 12 VDC +/- 0.5V
Input connector AC Adaptor: IEC 60320 C14
Input connector Monitor DC: 4 pin Mini DIN
Power Consumption (Typical): 32W
Audio input connector: 3.5mm TRS jack
Audio input signal range: 0.5Vrms maximum stereo signal
Internal Speakers output: Two 1W speakers
Video Interface Analog VGA, DVI
Input connector Mini-D-sub 15-pin VGA type
DVI-D connector for digital video input
Dimensions Width: 23.9" (606mm)
Height: 14.6" (373mm)
Depth: 2.4" (61mm)
Shipping Dimensions Width: 28" (711mm)
Depth: 10.5" (267mm)
Height: 20" (508mm)
Weight Unpackaged:: 8.8 kg (19.4 lb)
Packaged:: 13.2 kg (29 lb)
Temperature Operating: 0 °C to 40 °C (32 °F to 104 °F)
Storage: Storage: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity (non-condensing) Operating: 20% to 80%
Storage: 10% to 90%
Enclosure Color Black or White
MTBF 50,000 hours demonstrated
Mounting Options With provided stand (on flat surface or bolted to surface via holes in base) in landscape; 100mm VESA rear-mount

Part Number

Technology Interface Surface Treatment Part # (RoHS
Color Availability
IntelliTouch USB and Serial Anti-glare E263686 White Worldwide
IntelliTouch USB and Serial Anti-glare E263686 Black Asia/Pacific
