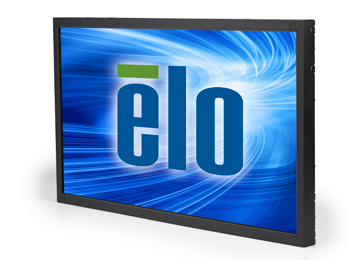

Elo 4243L

The Elo Touch Solutions 4243L 42-inch full HD open-frame touchmonitor provides smooth dual-touch performance with IntelliTouch Plus surface acoustic wave technology. The 4243L touchmonitor is 2.6-inches in total thickness and less than 1-inch in border width. The new sleek mechanical design enables thinner and smaller kiosk design for various applications like retail, hotels, gaming, transportation and other commercial uses. Applications in demanding public access environments are enabled with UL60950 ball drop glass compliance. The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.

The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.

Specifications

Model 4243L
Display 42.0" diagonal
Aspect Ratio 16:9, active matrix TFT LCD
Useful Screen Area Horizontal: 36.6" (930 mm)
Vertical: 20.6" (523 mm)
Native (Optimal) Resolution 1920 x 1080
Other Supported Resolutions 640 x 480 at 60Hz
720 x 480 at 60Hz
720 x 576 at 50Hz
800 x 600 at 56Hz
1024 x 768 at 60Hz
1280 x 720 at 50 Hz
1280 x 720 at 60Hz
1280 x 1024 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 50 Hz
1920 x 1080 at 60 Hz
Colors 1073 million
Brightness (Typical) LCD panel: 500 nits
IntelliTouch Plus: 450 nits
No Touch: 450 nits
Response Time - Total (Typical) 8 msec
Viewing Angle (Typical) Horizontal: 89° or 178° total
Vertical: 89° or 178° total
Contrast Ratio (typical) 4000:01:00
On-Screen Display (OSD) Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Input Select, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, Position, Rotation, Timeout, Language, Information, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Input Video Format Analog VGA, HDCP-capable HDMI (WW model only), DVI (Asian model only)
Input Video Signal Connector Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
Female DVI-D Dual Link Connector (Asian model only)
Input Frequency Horizontal: 31.5-75 kHz
Vertical: 47-63 Hz
Power Supply Internal AC
Input Voltage AC: 100-240 VAC, 50/60 Hz
Input Connector AC: IEC 60320 C14
Power Consumption (Typical) ON (monitor + AC/DC adapter): 105W;
SLEEP (monitor + AC/DC adapter): 7W;
OFF (monitor + AC/DC adapter): 5.5W
Monitor Dimensions Width: 38.5" (978 mm)
Height: 22.6" (575 mm)
Depth: 2.6" (65 mm)
Shipping Box Dimensions (W x D x H) Width: 45.9" (1168 mm)
Height: 33.7" (856 mm)
Depth: 11.02" (280 mm)
Weight Actual: 44 lbs (20 kg)
Shipping: 61 lbs (27.67 kg)
Temperature Operating: 0°C to 40°C (32°F to 104°F)
Storage: -20°C to 50°C (-4°F to 140°F)
Humidity (noncondensing) Operating: 20-80%
Storage: 10-95%
Form Factor Open-frame
Enclosure Color Black
MTBF 50,000 hours demonstrated
Mounting Options 400, 400, 6mm VESA mount
Side mounting brackets included
Sealing Touchscreen sealed to bezel
Touchscreen sealed to LCD

Part Numbers

Technology Interface Surface Treatment Part # (RoHS
Compliant)
Availability
IntelliTouch Plus USB Clear E000444 Worldwide
IntelliTouch Plus USB Clear E000445 Asia/Pacific
Non-touch USB Clear E000447 Worldwide
